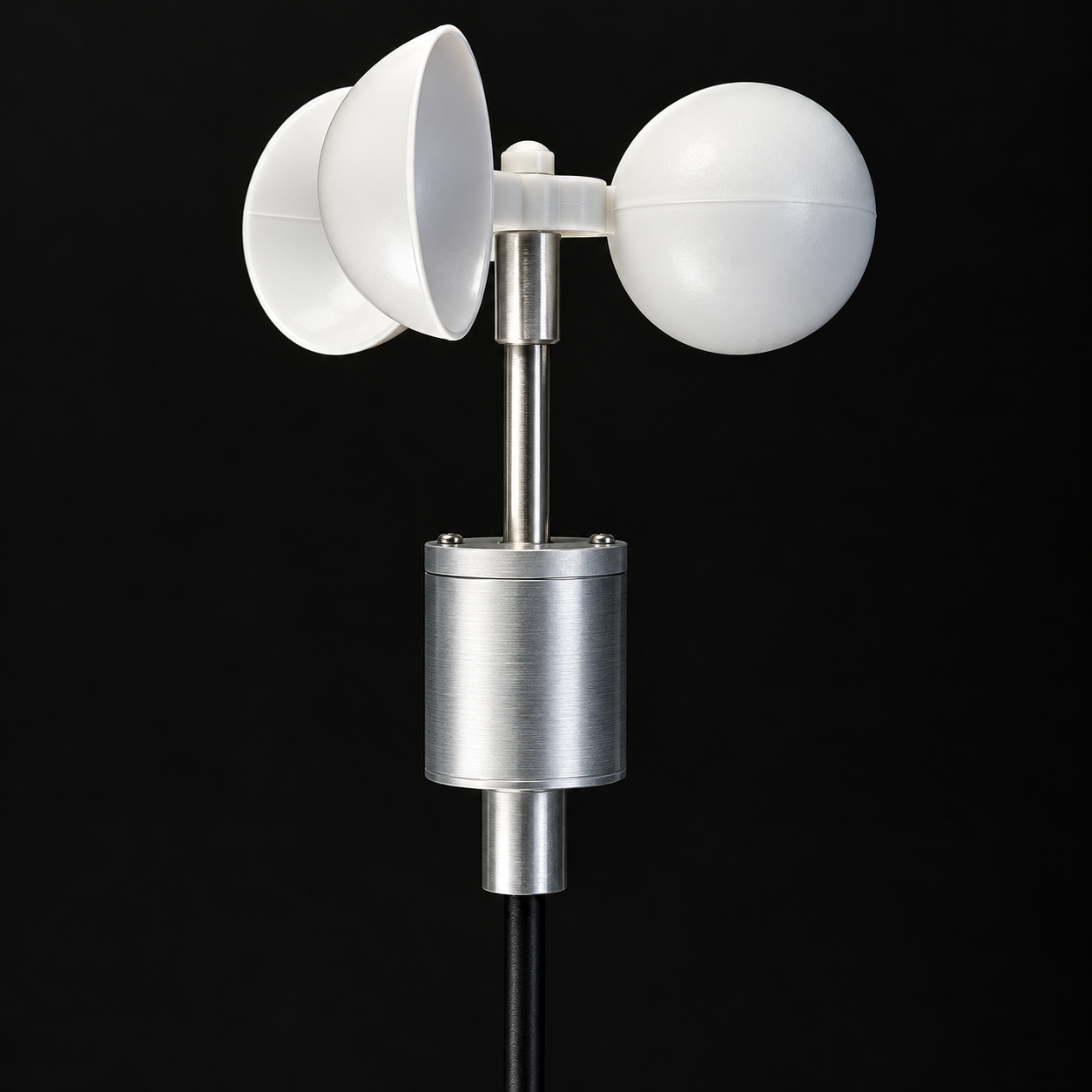

The EMCON Wind Speed Sensor is a three-cup anemometer designed for
meteorological observations where reliable wind-speed measurement,
accuracy, and long-term stability are required.
The sensor uses a three-cup anemometer with an infrared pickup to measure
wind velocity. Wind movement causes the cups to rotate, and the infrared
pickup generates a digital pulse output corresponding to the measured
wind speed.
The sensor provides a measurement range of 0 to 60 M/sec with a specified
accuracy of ±0.3 M/sec. The equivalent measurement range is 0 to 216 Kmph
with an accuracy of ±1.08 Kmph.
Long cables can be connected to the sensor, enabling remote and centralized
wind-speed measurements. This makes the sensor suitable for distributed
meteorological and environmental monitoring installations.
The sensor has a height of 234 mm and weighs approximately 300 grams.
Aluminum and ABS plastic materials are used for improved durability.
The bottom of the sensor contains two threaded holes that allow the unit
to be mounted onto a suitable bracket.
The sensor is designed for long-term operation in hostile weather
conditions. Its water-splash and dust-resistant construction helps
support reliable operation in outdoor monitoring environments.
The EMCON Wind Speed Sensor is a three-cup anemometer designed for
meteorological observations where reliable wind-speed measurement,
accuracy, and long-term stability are required.
The sensor uses a three-cup anemometer with an infrared pickup to measure
wind velocity. Wind movement causes the cups to rotate, and the infrared
pickup generates a digital pulse output corresponding to the measured
wind speed.
The sensor provides a measurement range of 0 to 60 M/sec with a specified
accuracy of ±0.3 M/sec. The equivalent measurement range is 0 to 216 Kmph
with an accuracy of ±1.08 Kmph.
Long cables can be connected to the sensor, enabling remote and centralized
wind-speed measurements. This makes the sensor suitable for distributed
meteorological and environmental monitoring installations.
The sensor has a height of 234 mm and weighs approximately 300 grams.
Aluminum and ABS plastic materials are used for improved durability.
The bottom of the sensor contains two threaded holes that allow the unit
to be mounted onto a suitable bracket.
The sensor is designed for long-term operation in hostile weather
conditions. Its water-splash and dust-resistant construction helps
support reliable operation in outdoor monitoring environments.
Tell us what you need to measure, where it will be deployed and the application. Our team can help identify an existing EMCON solution or discuss a custom-developed system.
