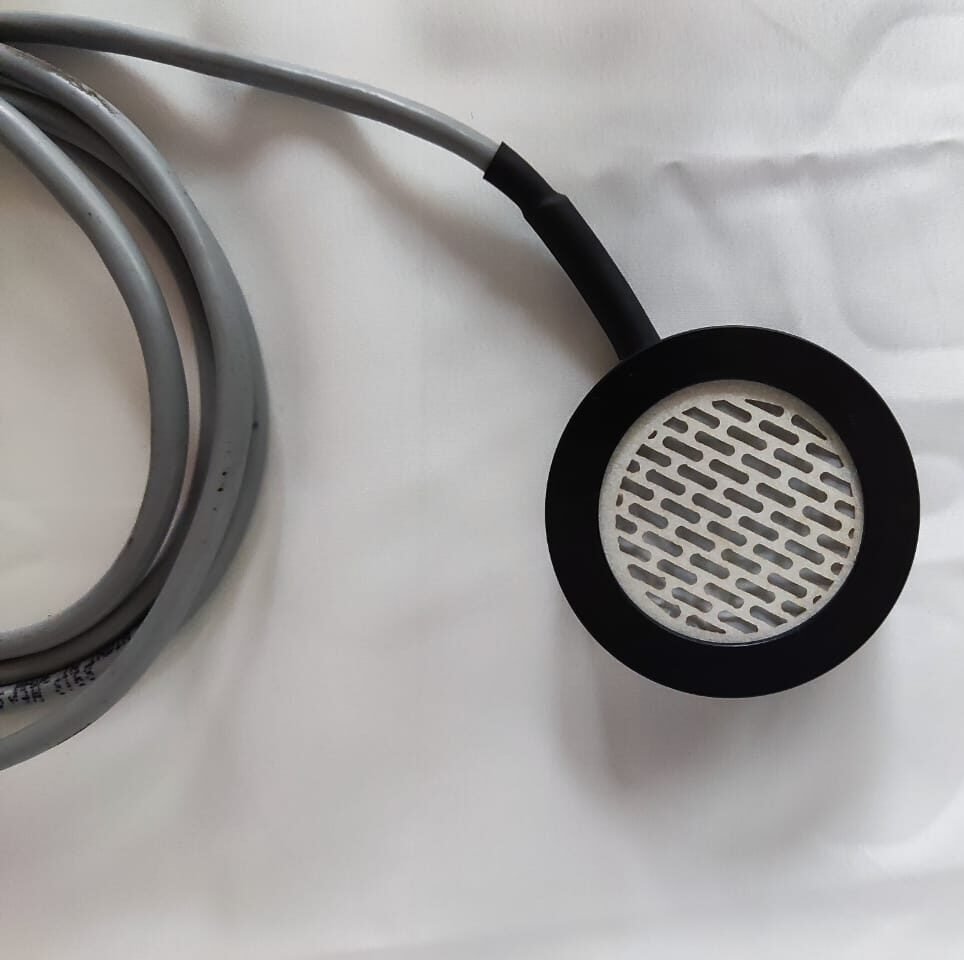

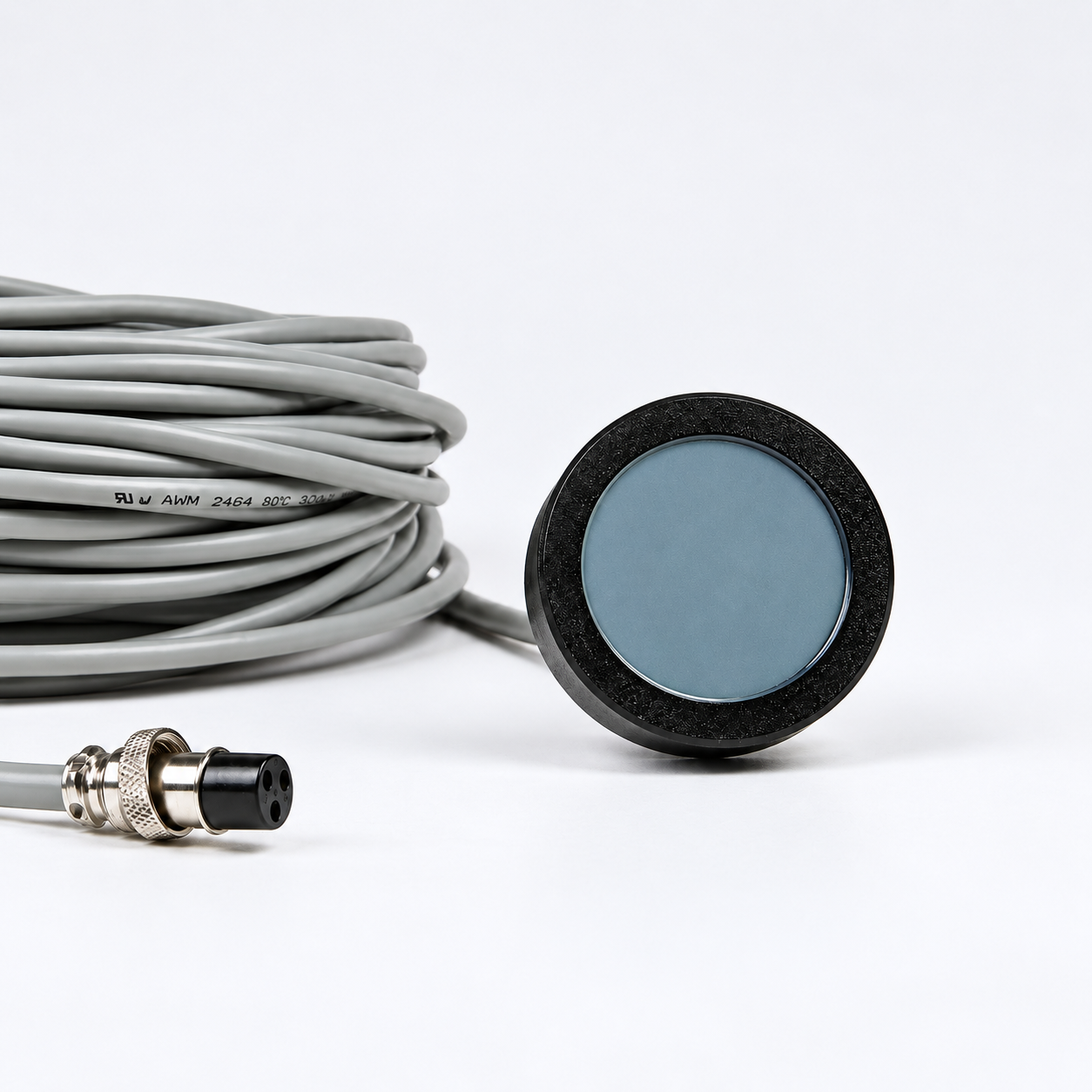

Combined Air-Temperature / Relative Humidity Sensor

The EMCON Combined Air-Temperature and Relative Humidity Sensor is designed for accurate and reliable measurements of Air Temperature and Relative Humidity from remote and hostile locations. The sensor combines a Pt.1000-based air temperature sensing element with a capacitance-based relative humidity sensor. Its low power consumption and ability to support long cable connections make it suitable for remote and centralized measurement possible. The sensor is designed for long-term operation, including use in hostile weather conditions, with dust-resistant construction andexcellent long-term stability

Key Features

● Combined air temperature and relative humidity measurement
● Pt.1000 type air temperature sensor
● Capacitance-based relative humidity sensor
● Long cable connection capability for remote measurements
● Suitable for centralized measurement systems
● Wide operational temperature range
● Dust-resistant construction
● Linear voltage output
● Compact sensor construction
● Excellent sensor interchangeability
● Excellent long-term stability
● Low power consumption
● Fully indigenous make

Applications

● Architectural studies
● Meteorology
● Agro meteorology
● Micro meteorology
● Civil and structural studies
● Climate control chambers
● Remote environmental monitoring

Remote Monitoring

Using long cable without signal loss.
Can be connected to LoRa based or any other wireless telemetry network.

Electrical Specifications

Power: 7 to 12 V DC
Weight: 85 Grams.

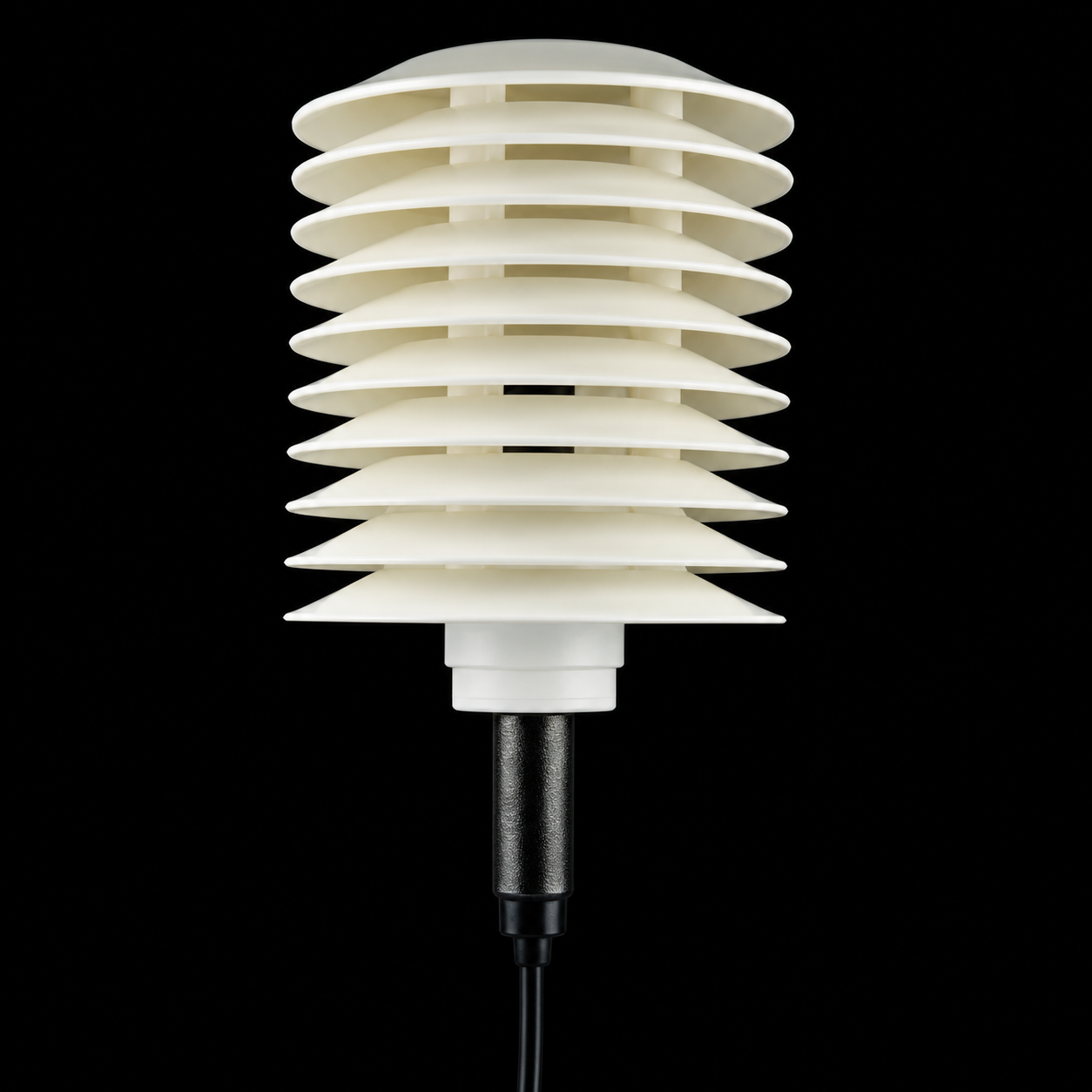

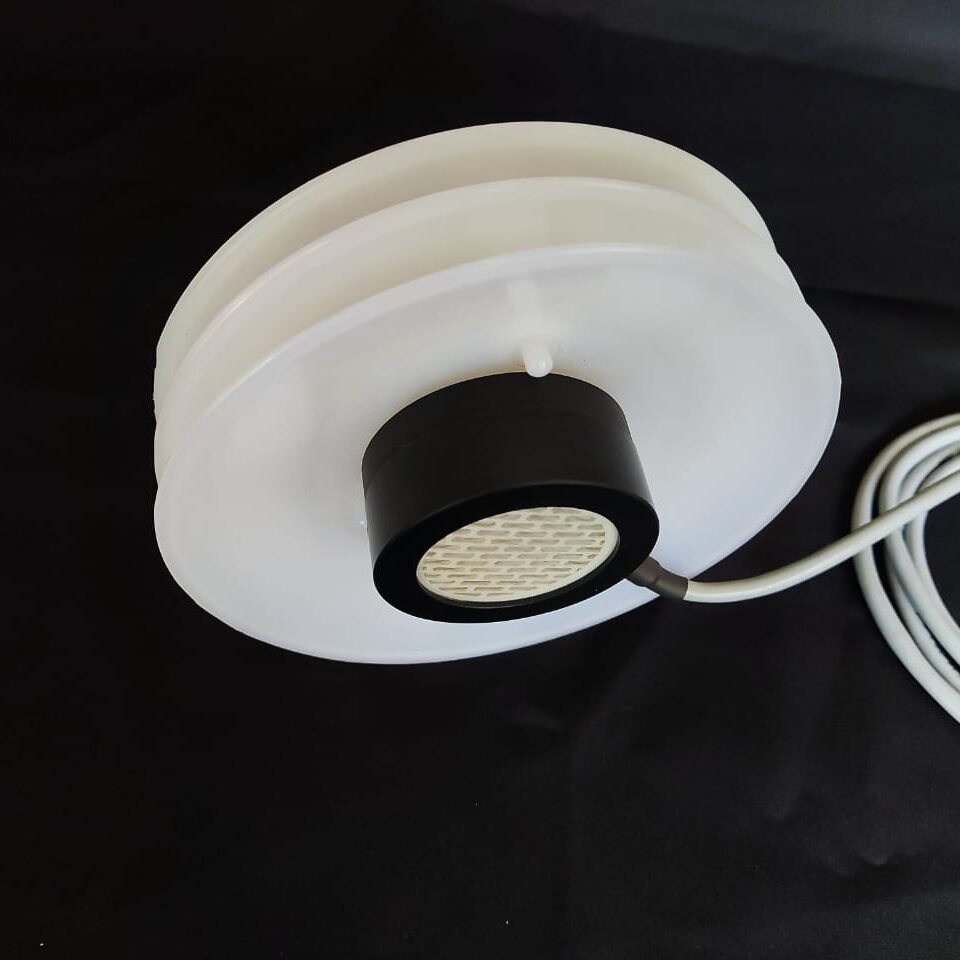

Weather Protective Shade

A weather protective shade is provided for protecting the sensor from rain,dust, and sunlight while maintaining easy movement of air around the sensing elements.

Technical Specifications

Product Type
Combined Air-Temperature / Relative Humidity Sensor
Air Temperature Sensor
Pt.1000 type
Temperature Range
-10 to 70 °C
Accuracy
±0.2 °C
Operating Temperature
-50 to 90 °C
Relative Humidity Sensor
Capacitance based
Relative Humidity Range
0 to 100%
Relative Humidity Accuracy
±3%
Excitation Power
7 to 12 V DC
Signal Output
Analog or Digital type available.
Air-Temperature Measurement Range
0 to 60 °C, -10 to 70°C
