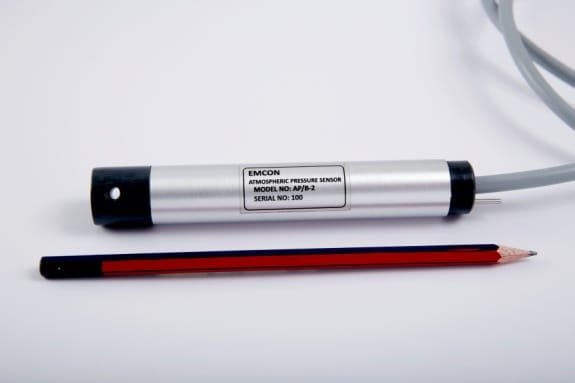

EMCON Barometric Pressure Sensor (EMC-BARO-MAX-PIZ-16)

EMCON Atmospheric pressure sensor is a digital sensor with high precision that measures the pressure variations in the atmosphere and can be operated in very rugged hostile weather conditions. The small size and very low power consumption makes it ideal for various field level applications. The sensor comes with a digital as well as analog output which can be fed to standard data loggers.

Features

●  Excellent accuracy
●  Long term stability
●  Temperature Compensated throughout the range
●  Digital and Analog voltage outputs available
●  Compact size

ELECTRICAL

Excitation Power: 7 to 12 VDC.
Power: 10mA at 12 VDC.
Signal Output: TTL output.

PHYSICAL

Enclosure dimensions: 140 mm. X 20 mm. (Tubular design)

Technical Specifications

Different Ranges

300 to 1100 hPa (17.70 – 32.50 in Hg) other ranges on request.

Accuracy

± 1.5 hPa over the full pressure range.

Resolution

0.1hPa.

Operating temperature range

-40 to 85 ᴼC.

Temperature Compensation Range

-40 to 85 ᴼC.

Time constant

Less than 10 sec. to reach 90% final output with step function pressure input.

Long term stability

±1.0 hPa over 12 months.

Accuracy

±0.12 hPa average across the total range

Have a measurement requirement?

Tell us what you need to measure, where it will be deployed and the application. Our team can help identify an existing EMCON solution or discuss a custom-developed solutions.
