Evaporation Sensor (Capacitance Type)

Overview

The EMCON Evaporation Sensor (Capacitance Type) is designed for
meteorological observation where reliable measurement accuracy and
long-term stability are required.

The sensor provides a linear output corresponding to changes in
water-level fluctuations inside an evaporation pan. It is designed
for long-term operation in hostile weather conditions with minimum
maintenance requirements.

Key Features

• Capacitance-type evaporation sensing
• Linear output for water-level fluctuations
• Long-term stability
• Good repeatability and accuracy
• Does not respond to changes in ambient temperature
• Does not respond to atmospheric pressure fluctuations
• Fully sealed construction
• Suitable for remote, hostile and coastal areas
• Small-size design
• Fully indigenous make
• Excellent sensor interchangeability
• Minimum maintenance requirements

Measurement Principle

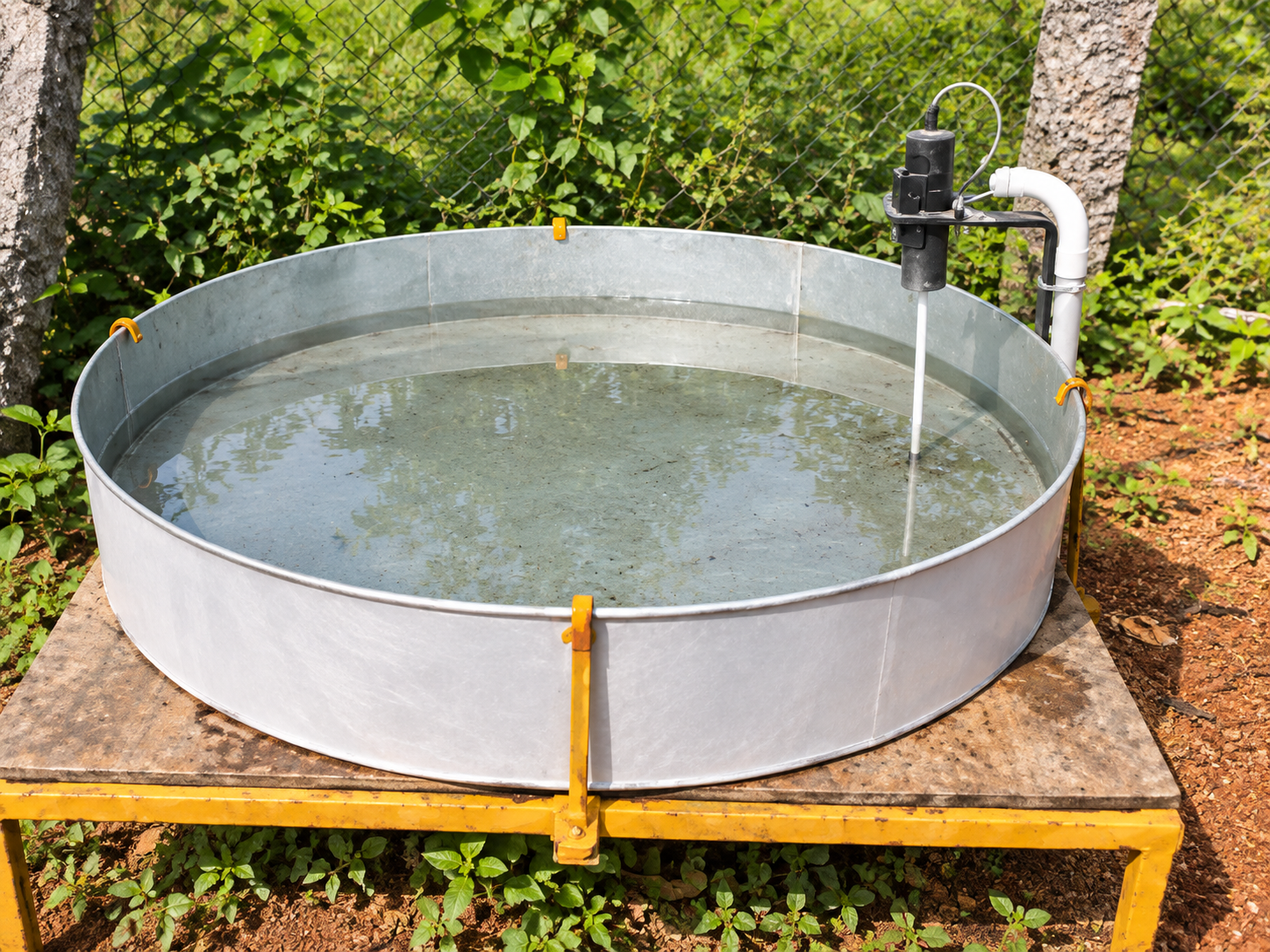

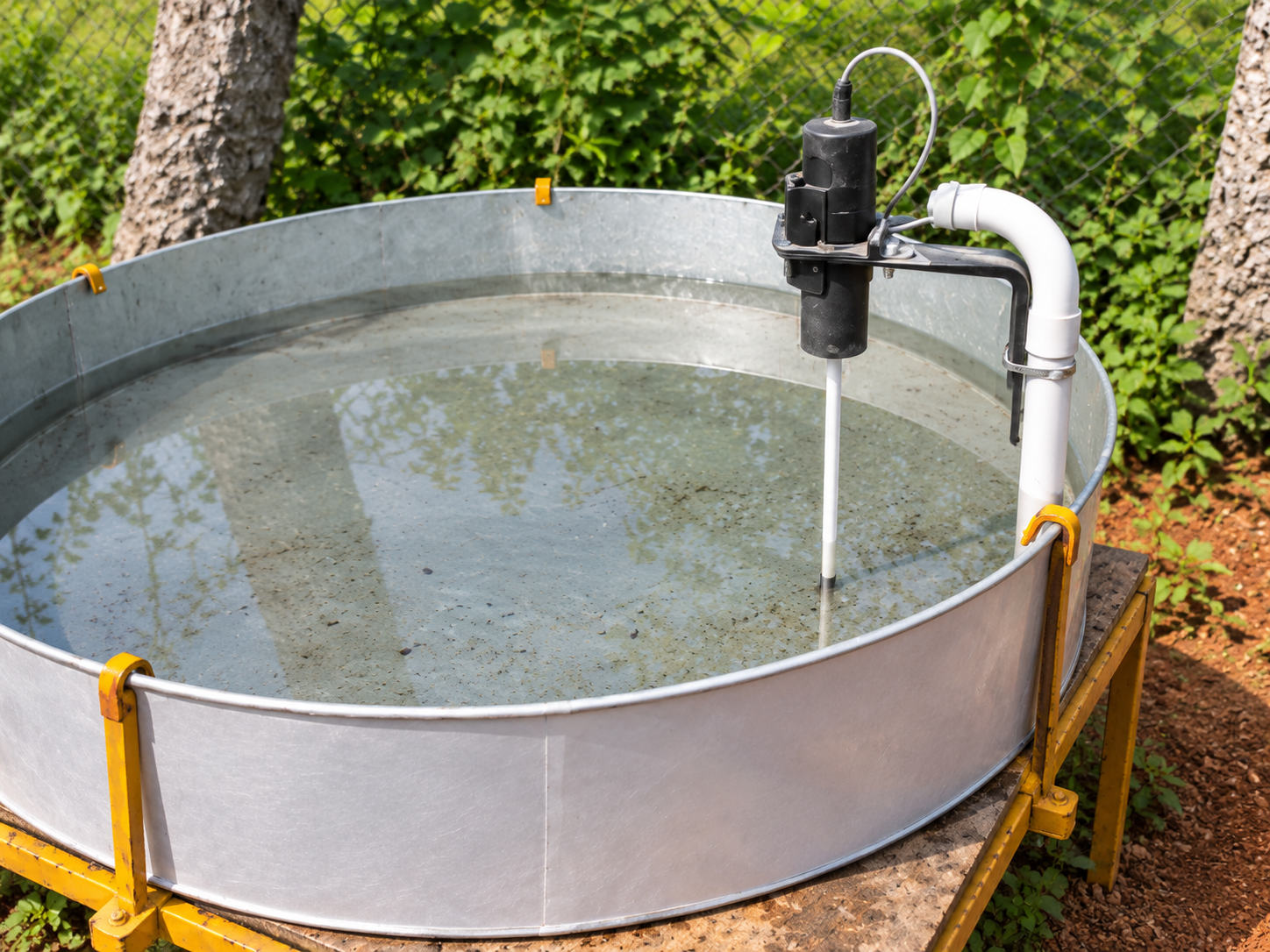

The sensor is designed to measure changes in water-level fluctuations
inside an evaporation pan. The capacitance-based sensing system
provides a linear output corresponding to changes in the water level,
allowing evaporation-related water-level changes to be monitored.

Applications

• Meteorology
• Agro Meteorology
• Hydrology
• Evaporation pan monitoring
• Long-term environmental observation

Water-Level Measurement

The sensor provides a linear output corresponding to changes in water
level inside an evaporation pan. The available measurement range is
0 to 300 mm.

Long-Term Stability

The EMCON Evaporation Sensor is designed for applications where
long-term stability, repeatability and good measurement accuracy
are required. It can operate for extended periods with minimum
maintenance.

Remote Monitoring

The sensor is supplied with a 2-meter cable, allowing the sensor to
be connected to suitable monitoring equipment. Its fully sealed
construction makes it suitable for use in remote and hostile
environmental locations.

Electrical Specifications

• Power Supply: 7.5 to 12 V DC
• Output: 0 to 3.3 V or 5 V

Measurement Specifications

• Measurement Range: 0 to 300 mm
• Accuracy: ±1 mm
• Output Type: Linear output

Physical Specifications

• Length: 380 mm
• Weight: 400 grams
• Material: Stainless steel and plastic
• Cable: 2-meter cable

Environmental Operation

The sensor features fully sealed construction and is designed for
use in remote, hostile and coastal areas. It is designed to provide
stable measurements without responding to changes in ambient
temperature or atmospheric pressure fluctuations.

Sensor Construction

The sensor uses stainless steel and plastic for long durability.
Its fully sealed construction provides suitability for long-term
operation in demanding environmental conditions.

Sensor Interchangeability

The EMCON Evaporation Sensor provides excellent sensor
interchangeability, supporting consistent use across suitable
measurement applications.

Output Signal

The sensor provides a linear voltage output. Available output
options are 0 to 3.3 V or 5 V, corresponding to the measured
water-level changes.

Maintenance

The sensor is designed for long-term operation with bare minimum
maintenance, making it suitable for continuous and remote
meteorological observation.
