● Photometric sensor for solar energy and light monitoring.
● Low power consumption.
● Suitable for remote monitoring.
● Can be connected to long cables without signal loss .
● Small-size design.
● Excellent sensor interchangeability.
● Excellent long-term stability.
● Affordable cost.
● Designed for long-term outdoor operation.

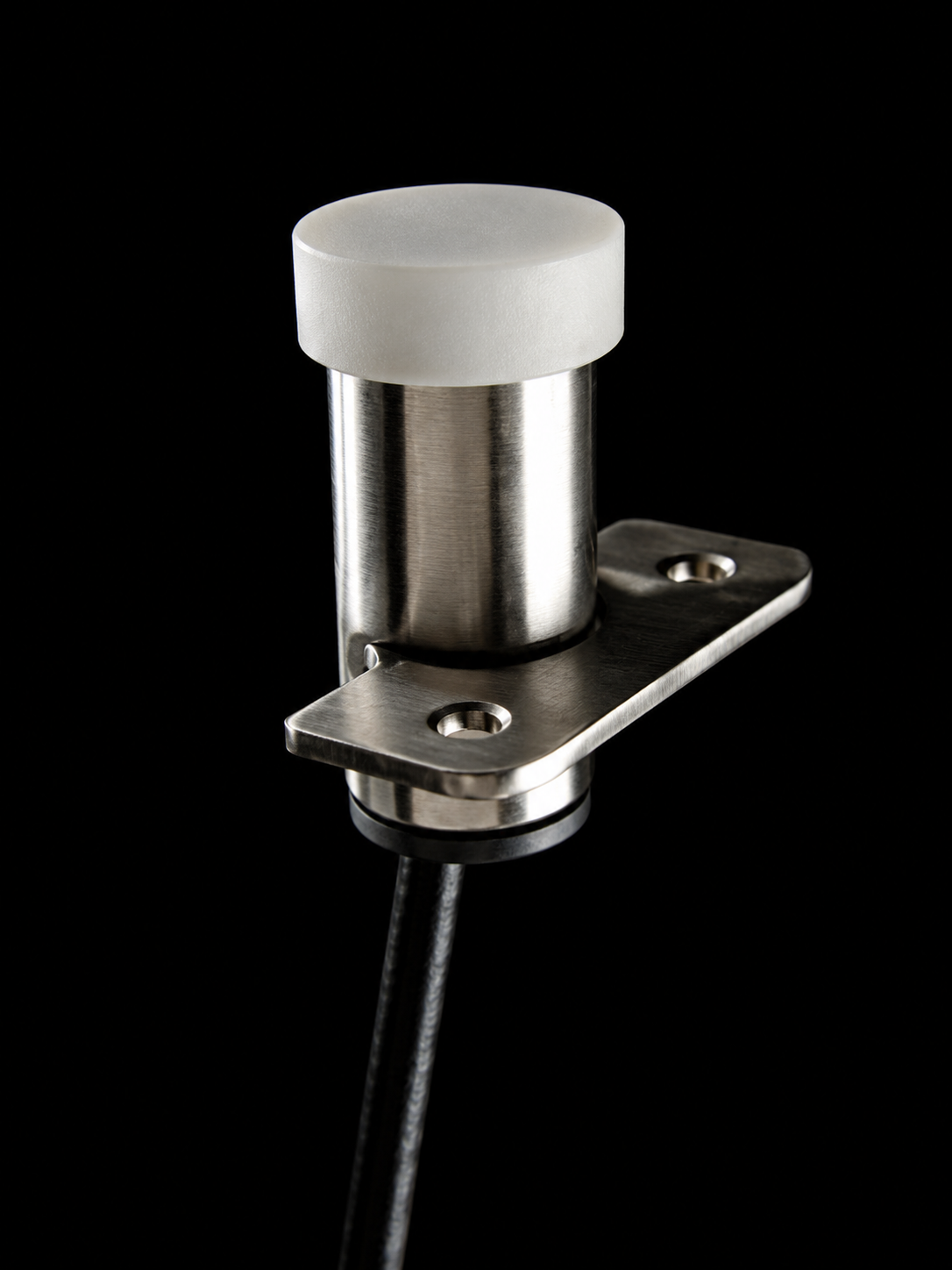

The sensor uses a photodiode covering the required spectral range. It is a silicon-cell pyranometer calibrated to measure solar radiation and provides an amplified output. The sensor is classified as a semiconductor-type sensor and converts the measured solar
radiation into a linear voltage output.
The sensor is designed to measure solar radiation using a calibrated
silicon-cell pyranometer with an amplified output. It provides a linear
voltage signal corresponding to the measured radiation.
The low power consumption and ability to operate with long cables make the sensor suitable for remote monitoring installations.
The sensor is designed for long-term operation in hostile weather conditions without maintenance or recalibration.
The sensor uses a photodiode designed to cover the required spectral range. The sensing element is a silicon-cell pyranometer calibrated for solar radiation measurement with an amplified output.
Data output as pulses which is produced every 1 minute once the after
the sun light goes above 20 W/m2 and switch off once the light goes below 20 W/m2. Therefore, the total number of pulses for a day can be counted as Sun shine Duration.
Solar Radiation Integration output: 3.3 or 5 volt pulses.
The pulses vary to the frequency of sunlight of a maximum 3pulses per second.
●Sensitivity : For a range of 0 to 3000 W/m2. Will be a voltage scale of 0 to 5 volts. *Which is 20mVolt/10 W/m2.
